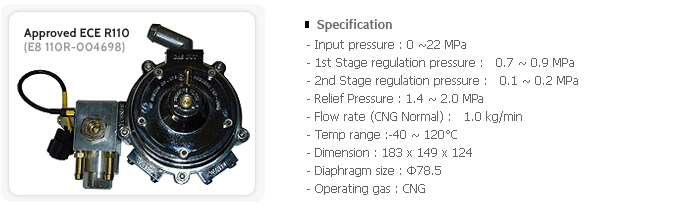

REDUCER FOR CNG
Advantage
- - High pressure regulator
- 1) A durability superiority because of the structure without the
diaphragm.
- 2) Inner water temperature sensor & filter
- 3) The relief valve vent the gas out when it is over the regulation
pressure.
- - Low pressure regulator
- 1) Pressure recovery effect increase according to rapid speed
increase
- - Relief device
- 1) It vent the gas if the pressure goes up over the 1st` stage
regulation pressure

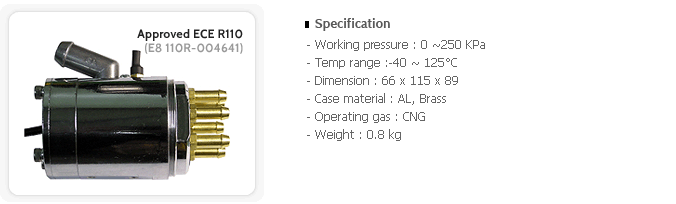

RAIL FILTER with MAP SENSOR
Advantage
- - Gas distributor structure
- - Inner gas pressure sensor and gas temperature sensor
- - Inner pressure sensor with easiness to replace filter
- - Only filter replacement (Simple, Cheapest)

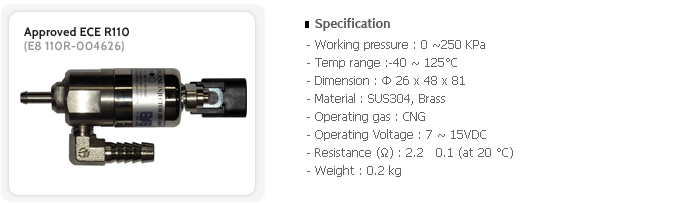

GAS INJECTOR
Advantage
- - An individual type injector
- - Precision Level : The injector is produced at the processing
precision of 0.02mm. And it can do control correct flow.
- - Speed : This fast type Injector is applied with 2ohm Coil Resistance,
so that it can inject gas much faster.
- - Quietness : As applied with Noise Prevention Technology, noise
level is much lower than Petrol injector.
- - Control type : Pick & hold type

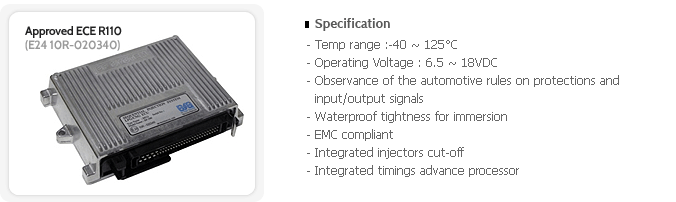

BI-FUEL ECU
Advantage
- - Petrol fuel control
- 1) Petrol fuel cut off function (Petrol injector cut off)
- 2) Petrol injector emulator function within
- - CNG / LPG Fuel control
- 1) Gas cut off & control
- 2) Gas injector control
- 3) Optimized gas fuel supply based on pressure fluctuation.
- 4) Optimized gas fuel supply based on temperature fluctuation.
- 5) An individual gas injector control
- - Safety function
- 1) Gas pressure automatic sensing function
- 2) When the gas leak, Fuel(Gas) cut off and Fuel change to petrol
- 3) Backfire prevention function by Gas empty
- - Automatic mapping works through target control
- - Switch (BF-502)
- 1) Display of remaining fuel
- 2) Display of using fuel
- 3) When the gas leak and when the gas pressure down, does larm
function through buzzer (safety function)
- 4) When the ECU Error, does alarm function through buzzer
- 5) Easy operation switch of one touch type

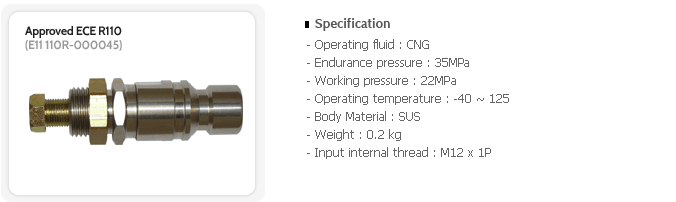

FILLING UNIT
Advantage
- - Filling unit was designed to meet the ECE R110 standard with
integrated check valve.
- - Sealing-friendly design
- - Reduces chatter during refueling

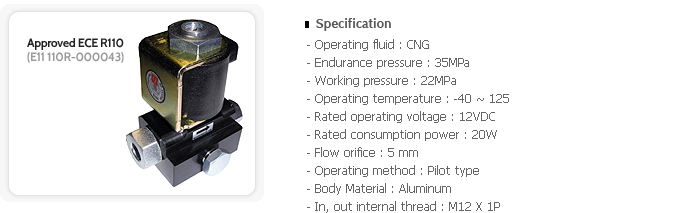

AUTOMATIC VALVE
Advantage
- - Guaranteed mass gas flow based on Pilot type.
- - Prevention of incoming abnormal substances thru installed Filter.
- - Automatic cut-off from ECU when engine's power off or CNG gas
leak cause by broken fuel pipe.
- - Guaranteed convenience and stability provided by automatic cut-off
when vehicle is power off.
- - With connection for pressure gauge
